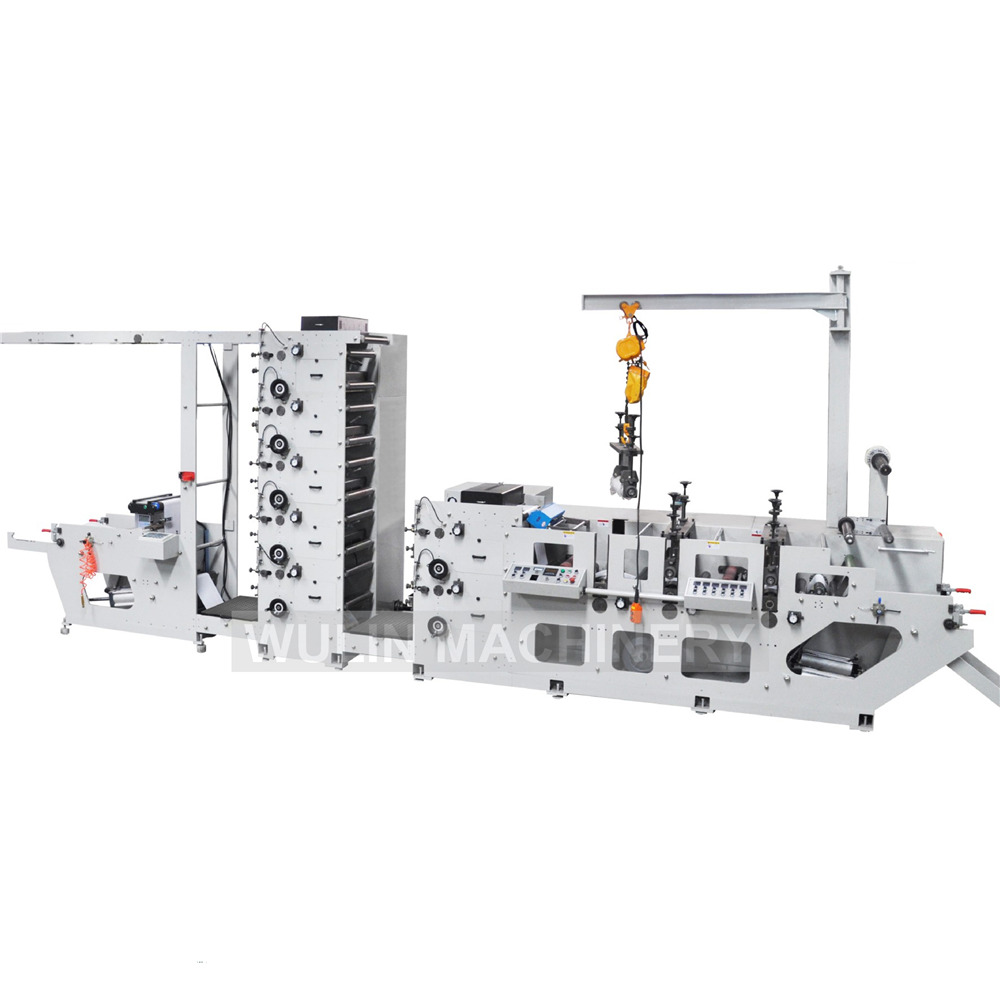

WL-Stack Type Flexo Printing Machine

 WL-Stack type flexo printing machine

Categories: Flexo printing machine

 Feature:
1. Main motor use imported variable frequency stepless speed regulation.
2. Unwinding and rewinding by magnetic brake, clutch control (optional: mistubishi auto tension controller).
3. Unwinding device controlled by auto web guide sensor.
4. Use the ceramic anilox roller, more wear and corrosion resistance and longer life, reduce the time of replacement of anilox roller, improve the printing efficiency.
5. Printing unit use 360 degree adjustment for web, they can be printed connected or separated.
6. Every printing unit have one IR dryer.
7. Optional: UV dryer.
8. Rewinding and unwinding adopt tile air shaft.
9. The ink roller can be auto break away and running at low speed to prevent ink from drying.
10.Auto add oil for the die cutting system, to reduce the heating made by magnetic die cutting roller when using.
11.From feeding paper, printing, gluing, UV polishing, laminating, printing, reverse die cutting, die cutting, die cutting dotted line, rewinding finished continues, take advantage of widely printing, no oil pollution, high economic efficient, fast printing etc. Ideal for the logistic label printing.



Video Links:
5colors stack type flexo printing machine with UV 5色层叠式柔印机
https://youtu.be/ksW3R-j20Ko

3colors stack type flexo printing machine 3色层叠式柔印机
https://youtu.be/Z0dNTTModYM



Technical Data

Model

320

420

560

Printing speed

60-100m/min

60-100m/min

60-100m/min

Printing color

1~4~12colours

1~4~12colours

1~4~12colours

Max. width of paper

350mm

450mm

580mm

Max .printing width

320mm

420mm

560mm

Max. unwinding diameter

600mm

600mm

600mm

Max. rewinding diameter

600mm

600mm

600mm

Printing length

175-355mm

175-355mm

175-355mm

Precision of chromatography

±0.1mm

±0.1mm

±0.1mm

Dimensions

2m*1.0m*2.2m

2m*1.1m*2.2m

2m*1.2m*2.2m

Machine weight

About 2600kg

About 2800kg

About 3000kg
