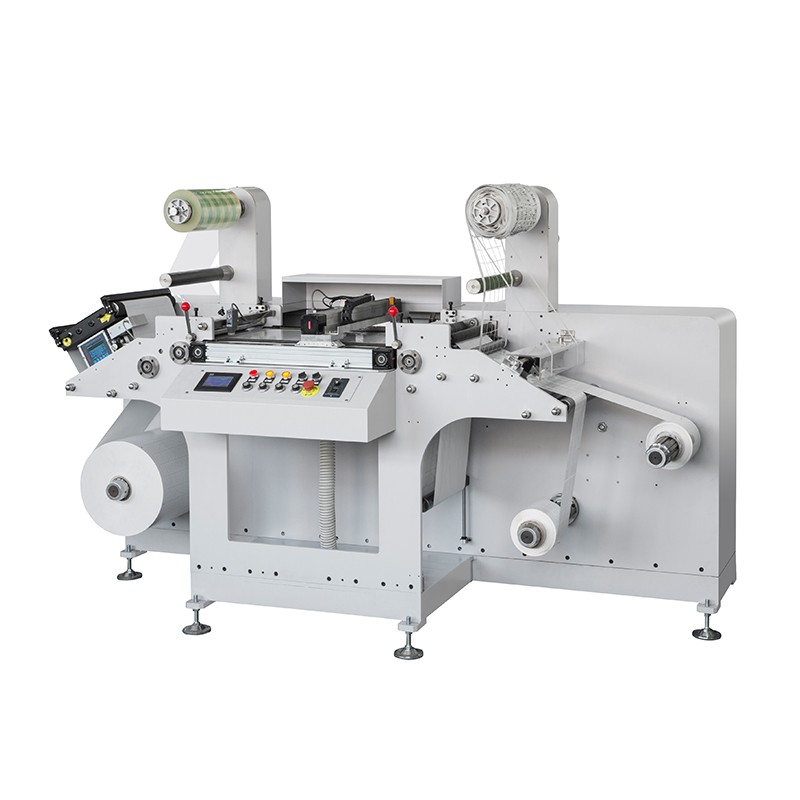

WL-370TOP Semi-Rotary Die Cutting Machine
This equipment is the latest research and development product of WULIN machinery, equipped with full-wheel-turn/intermittent softening unit, full-wheel-turn/intermittent die-cutting unit, split cutting unit, etc., in flexo printing, cold stamping, light, laminating, die-cutting, slitting, sheeting, etc.. Adopt advanced servo control system, humanized operation interface, greatly improve product quality and production efficiency. Availability of the latest turnround and intermittent interchangeable technologies. Suitable for digital printing label short order and medium and long order die-processing.
Categories: Die cutting machine
1.Maximum running speed of the machine: 120m / min in full rotation, 300 times / min intermittent (about 60m / min according to label length and type)
2. Maximum unwinding diameter: 800mm
3. Maximum winding diameter: 800mm
4. Paper core size: 3 inches to 6 inches (standard 3 inches)
5. Material thickness: 30um-300um
6. Maximum paper feeding width: 380mm
Intermittent / rotary die-cutting parameters
1. Standard magnetic roller: 140T (444.5mm)
2. Optional magnetic roller range: 80-210T
3.Maximum die cutting width: 370mm
4. Self-adhesive die-cutting tracking accuracy: +/- 0.15mm
技术参数 Technical Parameters
|
型号 Model |
370 |
480 |
|
机器最高运行速度 Max.running speed |
全轮转/rotary:120m/min 间歇/semi rotary:300times/min |
全轮转/rotary:120m/min 间歇/semi rotary:300times/min |
|
最大进纸宽度 Max.web width |
370mm |
480mm |
|
印刷周长 Printing repeat |
200-450mm |
200-450mm |
|
二次印刷精度 Reprinting precision |
±0.15mm |
±0.15mm |
|
模切周长 Die cutting repeat |
50-444.5mm |
50-444.5mm |
|
模切精度 Die cutting pricision |
±0.15mm |
±0.15mm |
|
最大放卷直径 Max. unwind dia. |
800mm |
800mm |
|
最大上收卷直径 Max. up rewind dia, |
450mm |
450mm |
|
最大下收卷直径 Max. down rewind dia. |
800mm |
800mm |
|
收卷纸芯大小 Rewind inner core size |
1寸-6寸均可（标配3寸） 1inch-6inch(standard in 3inch) |
1寸-6寸均可（标配3寸） 1inch-6inch(standard in 3inch) |
|
材料厚度 Thickness of material |
20-300um |
20-300um |
|
气源要求 Air source |
0.8Mpa |
0.8Mpa |
